Multilingual writing firmware for the Zerowriter Ink (Inkplate 5 V2). Started as a multi-language writing firmware and now supports 92 keyboard layouts across dozens of scripts.
Current release: v1.4.3
Firmware v1.3.x supports browser-based manual firmware update by selecting a .bin file on the WebServer page and uploading it to the device. Starting with v1.4.0, Ize Compose can automatically handle the full Online Update flow from GitHub Release asset download through firmware update. v1.4.3 is a firmware-only fix for GitHub sync delete operations; it keeps the v1.4.2 SD browser page at /ize_compose/ize_compose_1-4-2.html. Use autoupdate/izefirmware.bin or autoupdate/izefirmware_v1.4.3.bin as the firmware file.
Code repository: github.com/ize-studio/ize-compose

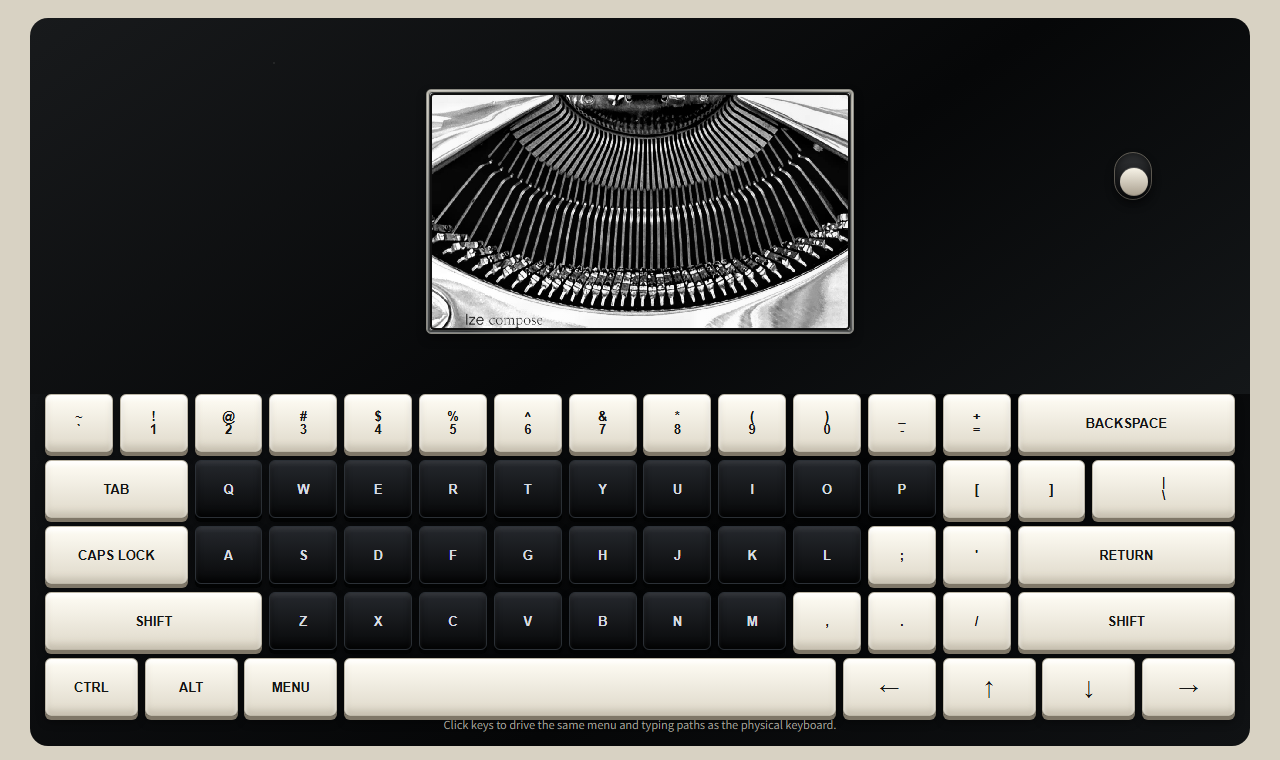

The Ize Compose Emulator is now available. You can preview the device screen, keyboard input, menu flow, language selection, document handling, and simulated web interface in a browser before installing the firmware.
Read the Ize Compose Emulator guide
v1.3.0 adds Wi-Fi client document-server mode, splits browser support into SD-loadable files, and preserves the SD settings backup flow.
v1.4.0 adds the top-level Sync flow for GitHub private repository sync, then turns the Wi-Fi adapter off after sync. The Bluetooth feature that acted as an external keyboard in v1.3.0 was removed because of battery-use issues. See RELEASE_1.4.3.md for the current release notes, RELEASE_1.4.2.md for browser sync changes, and RELEASE_1.4.0.md for the original v1.4.0 release.
For browser usage details, see WEB_INTERFACE.md.
Hardware scope warning
This repository is currently released for Zerowriter Ink only. Even if another device has an ESP32 and an e-ink display with matching or similar specifications, this code and firmware should not be treated as a general Inkplate/ESP32 writing firmware yet.
In particular, the keyboard input path is written for the current Zerowriter Ink hardware configuration. If the keyboard, keyboard controller, wiring, or input method changes, the input-handling code must be reviewed and modified before use.
- Zerowriter Ink (Inkplate 5 V2)
- ESP32-based Inkplate 5 V2 e-ink writing device
- Requires SD card for non-Latin fonts and document storage
Writing
- Plain-text editing with cursor navigation
- Multi-language composition engines, including Hangul jamo assembly
- Latin accent cycling, such as cycling the last typed Latin character through diacritic variants
- Right-to-left (RTL) text mode for Arabic-script layouts
- Text search (Ctrl+F)
- Copy / paste (Ctrl+C / Ctrl+V)
- Word and character count (3 display modes)
Keyboard & Language
- 92 keyboard layouts selectable from the system menu
- Two independent layout slots: one for English (QWERTY or Dvorak), one for a selected multi-language layout
- 12 script composition engines: Hangul, Arabic, Indic scripts, Thai, Myanmar, Khmer, Lao, Tibetan, Sinhala, Ethiopic, Japanese, Hebrew
- RTL layout support: Arabic, Hebrew, Kurdish (Arabic), Pashto, Persian, Urdu
- The v1.3.0 Bluetooth external-keyboard feature is not included in v1.4.0 because of battery-use issues
Files
- Saves and loads
.txtfiles on SD card (/ize_compose/) - File browser (up to 256 files)
- Network modes: Sync command plus Network Off, WiFi, and WebServer
- GitHub sync only runs the sync operation and then shuts the Wi-Fi adapter off
- Browser document list shows 12 documents per page with a short preview beside each title
- Documents, settings, firmware/font/image uploads, and GitHub settings are handled from the unified browser page
Display
- Partial screen update for fast typing feedback
- Configurable full-refresh threshold
- Boot/sleep image loaded from
/ize_compose/initial.pngon SD card; recommended image size is 1280x720 PNG under 500 KB - Sleep mode: Ctrl+L or sleep button; wake with wake button
Settings and updates
- Device menu keeps Sync at the top and Network near the bottom; the version line is display-only
- The unified browser page Settings & Update tab handles sleep timer, text size, line spacing, character spacing, typing speed, refresh limit, English keyboard, language selection, uploads, online update
- Starting with v1.4.0, the Online Update button can update both firmware and the versioned SD web page from the GitHub Release assets in one flow. v1.4.2 keeps this one-button flow, adds browser-triggered GitHub sync in Wi-Fi mode, and keeps external connection actions disabled in WebServer mode. v1.4.3 fixes GitHub sync when a sync needs to delete remote
docNNNN.txtfiles. - The device menu header now shows the language selected in settings, even when Ctrl+Space has temporarily switched input back to English.
- Settings are saved to device preferences and backed up to
/ize_compose/settings_backup.json; GitHub token is included so it survives reinstall/reset restore - Firmware uploads use
izefirmware.bin - Font and image uploads are routed by filename
The firmware expects support files on the SD card under /ize_compose/.
| SD card path | Required | Purpose |
|---|---|---|
/ize_compose/initial.png |
Recommended | Boot/sleep image |
/ize_compose/ize_compose_1-4-2.html |
Required for browser UI | Unified Documents, Settings, Update, and GitHub settings page |
/ize_compose/hwalja/hwalja_hangul.bin |
Recommended for multi-language Hangul input | Hangul syllable font |
/ize_compose/hwalja/hwalja_jamo.bin |
Recommended for multi-language Hangul input | Hangul jamo/composition font |
/ize_compose/hwalja/hwalja_latin.bin |
Recommended | Full Latin and Latin-extended font |
/ize_compose/hwalja/hwalja_jp.bin |
Optional | Japanese Hiragana/Katakana |
/ize_compose/hwalja/hwalja_greek_cyrillic.bin |
Optional | Greek and Cyrillic |
/ize_compose/hwalja/hwalja_arabic.bin |
Optional | Arabic-script layouts |
/ize_compose/hwalja/hwalja_indic.bin |
Optional | Indic-script layouts |
/ize_compose/hwalja/hwalja_sea.bin |
Optional | Thai, Khmer, Lao, Myanmar, Tibetan |
/ize_compose/hwalja/hwalja_misc.bin |
Optional | Ethiopic, Georgian, Armenian, and other scripts |
/ize_compose/settings_backup.json |
Generated | Settings backup written by the firmware. Keep it when preserving settings across reset/reinstall. |
/ize_compose/upload/izefirmware.bin |
Temporary | Staged firmware file used internally during SD OTA update |
When using files directly from this repository, make sure the final SD card paths match the table above. Font files must end up inside /ize_compose/hwalja/.
initial.png must be a PNG file, should be prepared at 1280x720, and must stay under 500 KB. The firmware loads it into memory before display; files larger than 500 KB are skipped. The image is centered on the active display canvas and is not automatically scaled down, so oversized images are clipped from the center rather than resized.
The repository sdcard/ize_compose/ folder contains the unified browser page. Font binaries may be distributed separately or generated from the font tools; the device still expects them at the paths listed above.
The main device menu is intentionally small:
Sync, New, Save, Count, Sleep, Network
Use Sync for one-shot GitHub document sync. Use Network for Off, WiFi, or WebServer.
Off: turns network services off.WiFi: scans visible Wi-Fi networks, connects as a client, and serves the unified browser page at the local IP shown on the device.WebServer: asks for a 10-digit numeric password, starts the fixedIZEcompose_FileServeraccess point, and serves the unified browser page athttp://192.168.4.1/.
The device screen shows the WebServer password until the browser PIN is accepted. WebServer mode starts its automatic shutdown tracking only after PIN authentication. After that authenticated client session has existed and no clients remain connected for more than 2 seconds, WebServer mode shuts down automatically. Use Ctrl + Menu to exit manually.
Detailed browser workflow is documented in WEB_INTERFACE.md.
Top-level Sync is intended to keep Ize Compose SD-card documents and one private GitHub repository folder aligned.
Syncuses Wi-Fi only for the sync operation. After the sync succeeds or fails, the firmware turns Wi-Fi off and returns to the device menu.- Because of ESP32 memory load, GitHub sync can run only when the upload plus download count is under 128 files.
- Existing
docNNNN.txtfiles can be edited on GitHub; if the GitHub copy is newer, the device downloads it. - New documents should be created on the device or uploaded through the device Wi-Fi/WebServer unified page as
.txtfiles. - Only files named
docplus four digits plus.txt, such asdoc0001.txt, are GitHub sync documents. docNNNN.txtfiles created only on GitHub are removed on the next sync, because the device assigns document numbers and owns document creation.- Files that do not match
docNNNN.txtare ignored by device sync and remain only on GitHub. To keep a GitHub copy while removing it from the device, rename it on GitHub first, for example by removing the first0fromdoc0001.txt, then delete the device copy. - Files deleted only on GitHub are uploaded back on the next sync if the SD card still has them.
- Device-side deletion is kept and still requires the device confirmation flow; use that path when a document should be removed from both sides.
Do not put a repository-side index.html document manager in the private writing repository. Private GitHub HTML files cannot be opened as a live web page without downloading them first, so online file management is not part of this release.
The firmware includes 92 keyboard layouts. The authoritative layout names and keymaps are defined in src/jado.h; this README keeps the count and points to the source instead of duplicating a long multilingual list.
The firmware has a built-in Latin fallback font. The full Latin font and all non-Latin script fonts are loaded from SD card at boot when the font files are present.
In a release install package, these files should be arranged under:
Ize-compose/sdcard/ize_compose/hwalja/
Copy the contents of Ize-compose/sdcard/ to the root of the SD card. The device expects the font files in /ize_compose/hwalja/.
| File | Scripts covered |
|---|---|
hwalja_hangul.bin |
Multi-language Hangul syllables |
hwalja_jamo.bin |
Multi-language Hangul jamo/composition glyphs |
hwalja_latin.bin |
Latin and Latin extended |
hwalja_jp.bin |
Japanese (Hiragana, Katakana) |
hwalja_greek_cyrillic.bin |
Greek, Cyrillic |
hwalja_arabic.bin |
Arabic, Persian, Urdu, Pashto, Kurdish Arabic |
hwalja_indic.bin |
Devanagari, Bengali, Gujarati, Kannada, Malayalam, Punjabi, Tamil, Telugu, Sinhala |
hwalja_sea.bin |
Thai, Khmer, Lao, Myanmar, Tibetan |
hwalja_misc.bin |
Ethiopic, Georgian, Armenian, and others |
Without these files the device still works, but only the built-in Latin fallback font is available.
hwalja_arabic.bin was regenerated in v1.1.1 so Arabic presentation forms use the full 8-pixel cell width. This reduces unwanted left/right blank space and improves visual connection between glyphs that should join.
| Item | Value |
|---|---|
| Platform | espressif32 |
| Board | esp32dev + Inkplate 5 V2 build flags |
| Framework | Arduino |
| CPU clock | 240 MHz |
| Upload / monitor speed | 921600 baud |
board = esp32devis used with manual build flags rather than a dedicated Inkplate board definition. This firmware will not work on a generic ESP32 dev board. The flags, PSRAM assumptions, display path, and keyboard input code are specific to the Zerowriter Ink / Inkplate 5 V2 hardware.
| Library | Version | Source |
|---|---|---|
| InkplateLibrary | 11.0.0 | lib/ (local, no separate install needed) |
| SdFat | 2.3.1 | PlatformIO registry |
| U8g2_for_Adafruit_GFX | 1.8.0 | PlatformIO registry |
| Adafruit GFX Library | 1.12.6 | PlatformIO registry |
| Adafruit BusIO | 1.17.4 | PlatformIO registry |
| Flag | Purpose |
|---|---|
-DARDUINO_INKPLATE5V2 |
Board identification |
-DINKPLATE_5V2 |
Enables correct code path inside InkplateLibrary |
-DBOARD_HAS_PSRAM |
Declares PSRAM presence to ESP-IDF |
-mfix-esp32-psram-cache-issue |
Workaround for ESP32 PSRAM cache bug (older silicon) |
-DSCREEN_WIDTH=800 / -DSCREEN_HEIGHT=600 |
Display resolution constants |
-Os |
Size optimization for OTA-safe firmware size |
-DIZE_INKPLATE_MINIMAL_IMAGE=1 |
Keeps only the image loading path this firmware uses |
-DIZE_ENABLE_DIRECT_GITHUB_SYNC=1 |
Builds the direct GitHub sync path |
-DIZE_ENABLE_BLE_KEYBOARD=0 |
Keeps removed Bluetooth keyboard code out of the build |
-D CORE_DEBUG_LEVEL=0 |
Suppresses all serial debug output |
| Item | Value |
|---|---|
| Partition table | min_spiffs.csv |
| Flash speed | 80 MHz |
| Flash mode | QIO (quad I/O) |
The clean v1.1.1 package includes
min_spiffs.csvat the project root so the build does not depend on a hidden PlatformIO package path.
- PlatformIO (VS Code extension or CLI)
- Zerowriter Ink (Inkplate 5 V2) with SD card
Download or open the Ize-compose/ package.
- Upload
Ize-compose/firmware/izefirmware.binas the firmware image. - Copy the contents of
Ize-compose/sdcard/to the SD card root. - Confirm that the SD card contains
/ize_compose/initial.png,/ize_compose/ize_compose_1-4-2.html, and/ize_compose/hwalja/*.bin.
git clone <this repo>
cd <repo>
pio run --target upload- Format SD card as FAT32.
- Create
/ize_compose/and/ize_compose/hwalja/on the SD card if they are not already present. - Copy
initial.pngto/ize_compose/. Use a 1280x720 PNG under 500 KB. - Copy
ize_compose_1-4-2.htmlto/ize_compose/. - Copy
hwalja_*.binfont files into/ize_compose/hwalja/. - Keep
settings_backup.jsonif it exists and you want to preserve settings across reset/reinstall.
If the device is already running v1.3.x, update from the WebServer or WiFi browser page. If the installed firmware does not provide that browser update page, disconnect the keyboard cable and connect the device by USB for a wired firmware upload.
- Open
Menu -> Network -> WebServerorMenu -> Network -> WiFi. - Enter the 4-digit PIN on the device.
- Connect to the device access point from a PC or phone.
- Open
http://192.168.4.1/in a browser. - Select the firmware file. The upload page sends it as
izefirmware.bin. - Wait for the device update/reboot flow to finish.
For document transfer, settings recovery, and update usage, see WEB_INTERFACE.md.
| Shortcut | Action |
|---|---|
| Ctrl+Space | Toggle selected language / English mode |
| Ctrl+L | Sleep (shows boot image) |
| Ctrl+F | Text search |
| Ctrl+C | Copy all text to clipboard |
| Ctrl+V | Paste clipboard |
| Space (accent cycling) | Cycle diacritic variants for last character |
Ize-compose/
firmware/
izefirmware.bin - release firmware image
sdcard/
ize_compose/
initial.png - boot/sleep image
ize_compose_1-4-2.html - unified browser page
hwalja/
hwalja_*.bin - font files to copy to SD card
settings_backup.json - generated settings backup, if present
src/ - clean PlatformIO firmware source
lib/InkplateLibrary/ - local Inkplate driver required for build
others/ - font sources and helper tools, not compiled
WEB_INTERFACE.md - browser page usage guide
INSTALL.md - install/build notes
RELEASE_1.4.3.md - v1.4.3 release notes
RELEASE_1.4.2.md - v1.4.2 release notes
RELEASE_1.4.1.md - v1.4.1 release notes
RELEASE_1.4.0.md - v1.4.0 release notes
RELEASE_1.1.2.md - v1.1.2 release notes
RELEASE_1.1.1.md - v1.1.1 release notes
src/
IZEcompose.ino - main firmware
jado.h - keyboard layout definitions and keymaps (92 layouts)
jeong_eum.h - multi-language composition engine and script engine types
insoe.h - text rendering, font selection
PsramAssets.h - PSRAM asset loading helpers
lib/
InkplateLibrary/ - Inkplate driver (local copy)
tools/
make_fonts.py - script used to build hwalja_*.bin from font sources
u8g2/bdfconv.exe - BDF font converter (used by make_fonts.py)
build/
fontbuild*/ - intermediate font build artifacts
noto_fonts/ - source Noto font TTFs used for font building
others/
*.ttf - original/reference font files
reference-headers/ - unused generated/reference headers, not compiled
platformio.ini - PlatformIO build config
- Supports only Zerowriter Ink / Inkplate 5 V2. Other Inkplate boards are outside this release scope.
- Mid-syllable cursor movement during Hangul composition is not supported.
- Only
.txtfiles; no formatting. - Single document open at a time.
- Bluetooth keyboard mode was removed in v1.4.0 because the v1.3.0 external-keyboard feature caused battery-use issues.
- Inkplate Arduino Library - Soldered Electronics
- U8g2_for_Adafruit_GFX - Oliver Kraus
- SdFat - Bill Greiman
- Noto Fonts - Google, used for font building under the SIL OFL 1.1 license
- Zerowriter Ink - original hardware
I build strange little writing tools.
If you enjoyed this project, coffee support is welcome.
Ko-fi: https://ko-fi.com/dievesa
/ize_compose/ize_compose_1-4-2.html serves the unified browser page. WiFi mode and WebServer mode serve the same page with Documents and Settings & Update tabs.
WebServer mode uses the fixed SSID IZEcompose_FileServer, but the device now asks for a 10-digit numeric Wi-Fi password before starting the access point. The password is shown on the device until the browser PIN is accepted. Automatic shutdown starts only after PIN authentication; after an authenticated client session has existed, WebServer mode shuts down if no clients remain connected for more than 2 seconds.
Online firmware update is connected to firmware endpoints. Local SD upload remains the supported path for fonts and initial.png.
Online update checks the GitHub release firmware asset and the SD web-page asset. If the release includes a newer ize_compose_<version>.html, the device downloads that SD web page before starting firmware OTA. OTA begins only after every required download has completed.
The web page filename includes the firmware/web-page version, for example ize_compose_1-4-2.html, so the currently served page is not overwritten while the browser is open.
Source and releases: github.com/ize-studio/ize-compose
.jpg)
