Add a hexagonal Community Home#2117

Closed
baxen wants to merge 4 commits into
mainfrom
fizz/community-home
Closed

Add a hexagonal Community Home#2117
baxen wants to merge 4 commits into
mainfrom
fizz/community-home

Conversation

@baxen

@baxen baxen commented Jul 19, 2026

Copy link
Copy Markdown
Contributor

Why

Buzz needs a stable, useful place to land when no community is selected, rather than treating onboarding as a global mode that can wedge the app.

What

  • Add a responsive honeycomb Community Home for opening, joining, creating, and removing saved communities
  • Make the active community selection nullable and expose Home from the persistent community rail
  • Return cleanly between Home and the join flow, including the zero-community state
  • Cover rendering, selection, join/back navigation, and the visual layout with focused Desktop E2E tests

Risk Assessment

Medium — this changes Desktop startup and community-selection behavior, but is isolated to the community shell and covered by static checks, unit tests, build, and focused E2E tests.

References

  • cd desktop && pnpm check
  • cd desktop && pnpm test — 3,171 passed
  • cd desktop && pnpm build
  • cd desktop && pnpm exec playwright test tests/e2e/community-home.spec.ts --project=smoke --workers=1 — 4 passed
  • Pre-push hooks: desktop, mobile, Rust, and Tauri test gates passed

Generated with Fizz

npub1rf6fvdj6ut0c4kcmjv4p5mmgh89nj58n69uu3fz3cvk3jn500hqs7emz79 and others added 2 commits July 18, 2026 22:36
Co-authored-by: npub1rf6fvdj6ut0c4kcmjv4p5mmgh89nj58n69uu3fz3cvk3jn500hqs7emz79 <1a7496365ae2df8adb1b932a1a6f68b9cb3950f3d179c8a451c32d194e8f7dc1@sprout-oss.stage.blox.sqprod.co>
Signed-off-by: npub1rf6fvdj6ut0c4kcmjv4p5mmgh89nj58n69uu3fz3cvk3jn500hqs7emz79 <1a7496365ae2df8adb1b932a1a6f68b9cb3950f3d179c8a451c32d194e8f7dc1@sprout-oss.stage.blox.sqprod.co>
Design refinement pass on the Community Home surface (visual only —
nullable selection, join/create/remove, and navigation are unchanged):

- Rebuild the hex grid as a true interlocking honeycomb: pointy-top
  hexes that tessellate, ResizeObserver-driven sizing, and balanced
  rows (e.g. 5 tiles render 3+2, not 4+1) instead of a staggered grid
  with large gaps.
- Fix hierarchy: communities now read as elevated hero tiles; join and
  create are lighter, additive cells rather than the heaviest elements.
- Square the icon tiles, strengthen tile contrast/borders, and use a
  clip-path-safe drop shadow for real elevation.
- Polish typography, hover/focus affordances (lift + primary outline +
  "Enter" hint), and add ease-out motion with reduced-motion fallbacks.

Co-Authored-By: Claude Opus 4.8 (1M context) <noreply@anthropic.com>
Signed-off-by: Bradley Axen <baxen@squareup.com>
baxen added a commit that referenced this pull request Jul 19, 2026
@baxen

baxen commented Jul 19, 2026

Copy link
Copy Markdown
Contributor Author

🐝 Design refinement pass — Community Home

Independent visual/design review by Honey, using the design guidance (heuristics only, no commands) from Impeccable. Underlying behavior (nullable selection, join/create/remove, navigation) is unchanged — this is a visual-only pass.

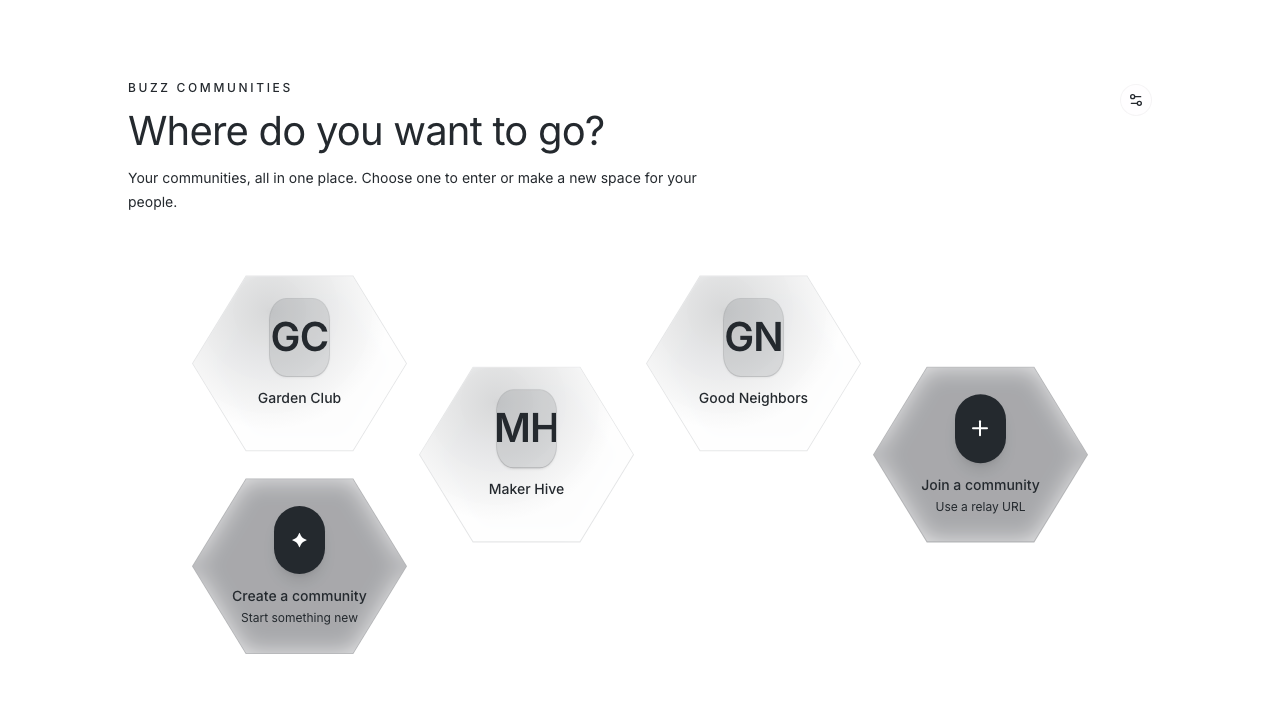

Before

The hexes didn't interlock (large gaps → scattered, not a honeycomb), the dark Join/Create actions dominated over the actual communities, and the community tiles were washed-out and flat.

01-before

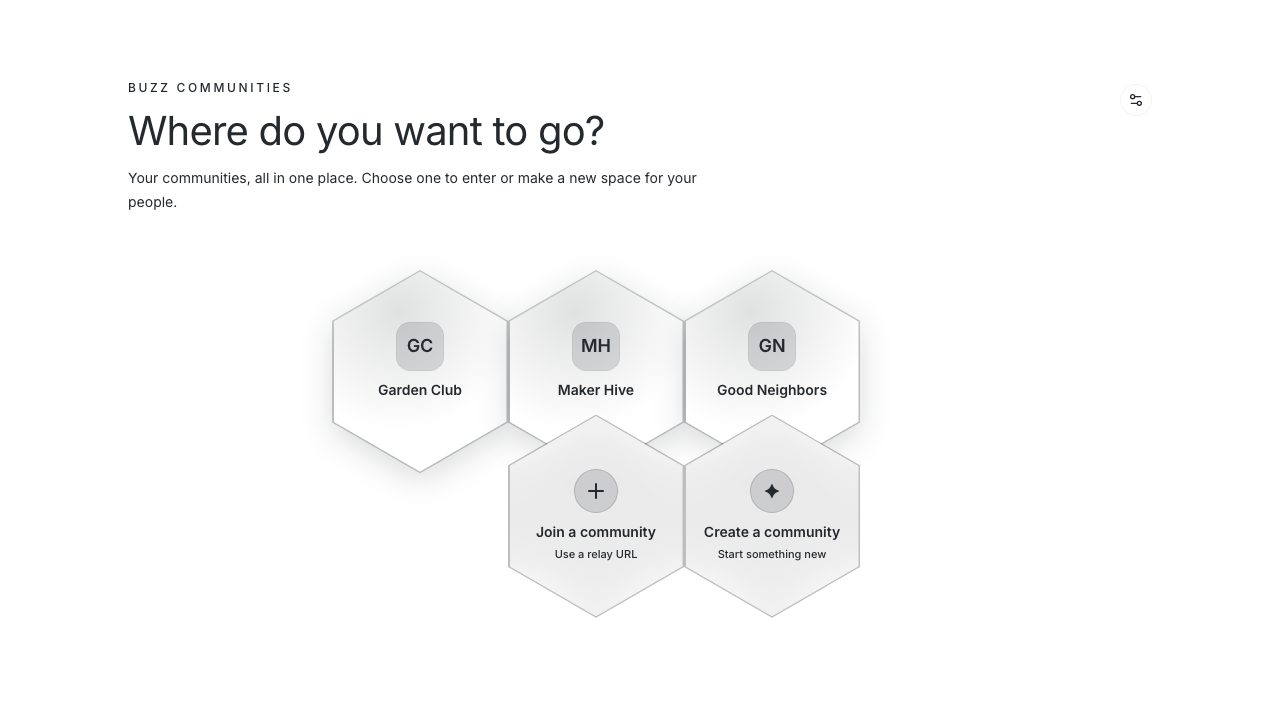

After

A true interlocking honeycomb (pointy-top tessellation, ResizeObserver-driven, balanced rows). Communities read as elevated hero tiles; Join/Create become lighter, additive cells. Icon tiles squared, contrast/borders strengthened, clip-path-safe drop shadow for real elevation.

02-after

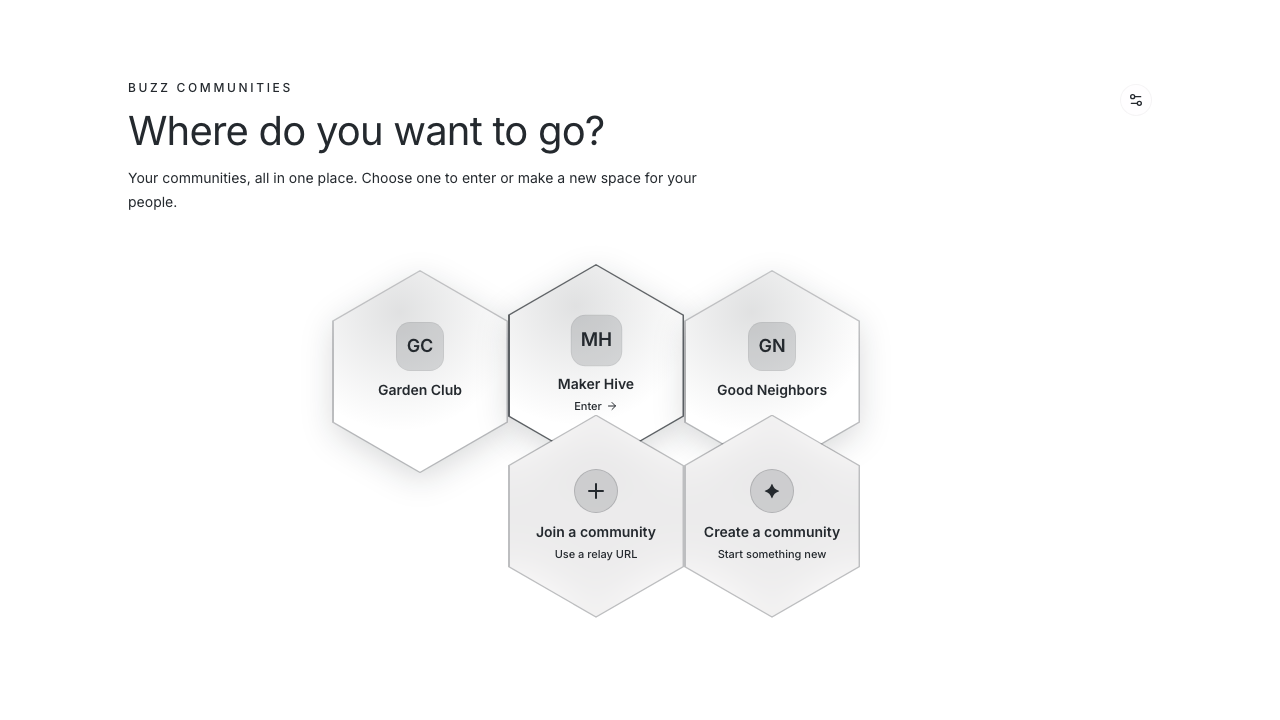

Hover / focus

Tile lifts with a primary outline and an "Enter →" hint; ease-out motion with a prefers-reduced-motion fallback.

03-after-hover

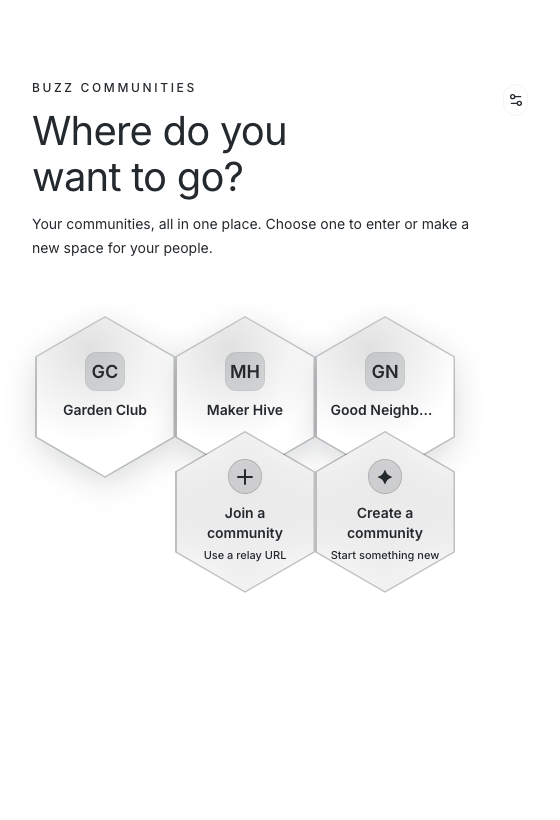

Responsive

The comb reflows and stays interlocked at narrow widths (hex size + columns adapt).

04-after-narrow

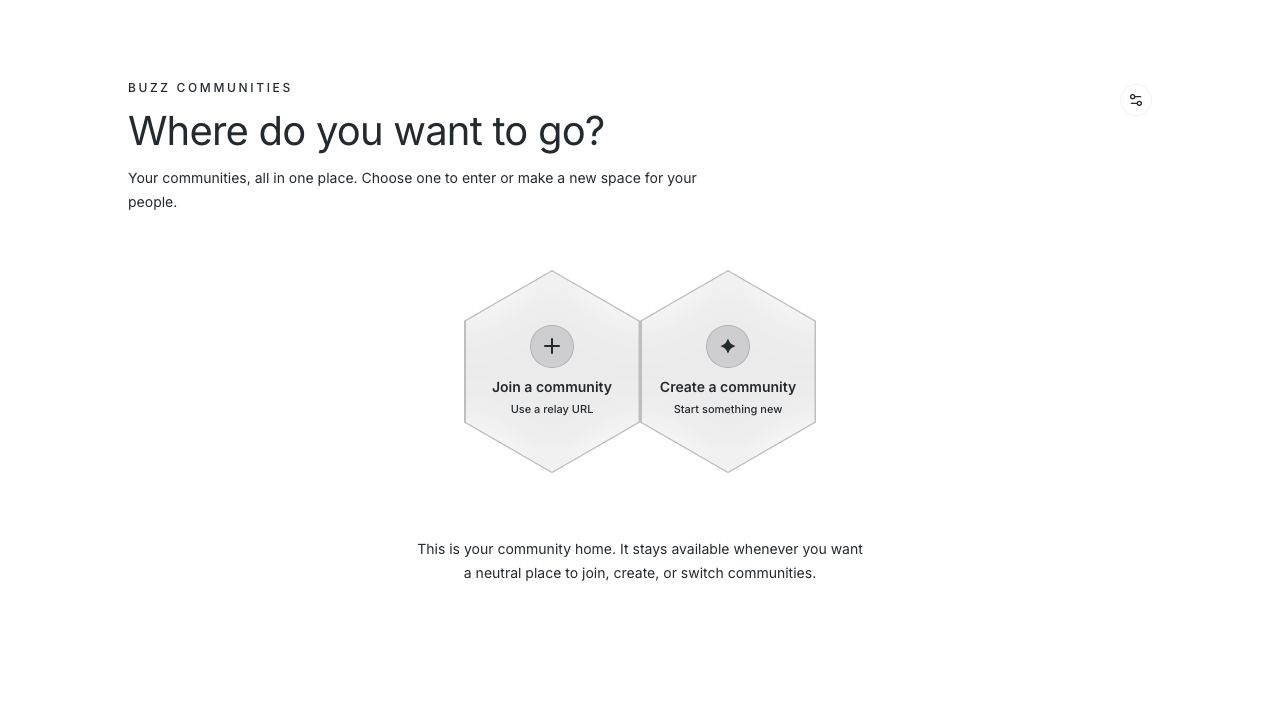

Empty state

With no saved communities, the two additive cells center cleanly over the helper copy.

05-after-empty


Validation: biome lint + tsc clean, check:px-text guard clean, production build green, and the 4 focused community-home E2E tests pass.

Co-authored-by: npub1rf6fvdj6ut0c4kcmjv4p5mmgh89nj58n69uu3fz3cvk3jn500hqs7emz79 <1a7496365ae2df8adb1b932a1a6f68b9cb3950f3d179c8a451c32d194e8f7dc1@sprout-oss.stage.blox.sqprod.co>
Signed-off-by: npub1rf6fvdj6ut0c4kcmjv4p5mmgh89nj58n69uu3fz3cvk3jn500hqs7emz79 <1a7496365ae2df8adb1b932a1a6f68b9cb3950f3d179c8a451c32d194e8f7dc1@sprout-oss.stage.blox.sqprod.co>
@baxen baxen closed this Jul 19, 2026
Reframe Community Home from a grid of community tiles into a single
connected honeycomb you build out — the model baxen asked for after
closing #2117.

- Real lattice: axial hex coordinates -> absolute pixel positions
  (pointy-top), ResizeObserver fit-to-container. Gapless and fully
  connected at any size, replacing the row-of-flexbox layout that read
  as floating hexes.
- Center is you: a profile hex from useIdentityQuery (works with no
  relay), defaulting to "You". Click opens identity settings.
- Peers on one board: saved communities and local managed agents
  (useManagedAgentsQuery, offline) spiral outward as filled hexes.
- Hover to grow: idle shows only filled cells; pointer-enter/focus
  reveals the connected frontier — faint ghost cells plus three live
  create tiles (New agent / New community / Connect community). Hidden
  tiles are pointer-events-none so blank-area clicks can't fire them.
- Wire "New agent" via requestOpenCreateAgent and mount
  RequestedAgentCreateDialogs here so it works before any relay.

Required radius is never capped, so no profile/community/agent/create
cell is ever silently dropped; MAX_RADIUS only bounds the decorative
ghost ring.

Co-Authored-By: Claude Opus 4.8 (1M context) <noreply@anthropic.com>
Signed-off-by: Bradley Axen <baxen@squareup.com>
@baxen baxen reopened this Jul 19, 2026
baxen added a commit that referenced this pull request Jul 19, 2026
@baxen

baxen commented Jul 19, 2026

Copy link
Copy Markdown
Contributor Author

Community Home, re-imagined: grow your own hex lattice

Reworked after @baxen closed this to rethink the model. Community Home is no
longer a grid of community tiles — it's a single connected honeycomb you
build out
, with agents, communities, and relays all peers on one board.

The model

  • Mostly-blank page with the gradient background showing through.
  • Center hex = you — your profile, with a default for someone who has no
    relay yet. Works fully offline (useIdentityQuery).
  • Hover to grow: idle shows only your filled cells; moving into the area
    reveals the connected frontier — faint ghost cells plus three live create
    tiles (New agent · New community · Connect community).
  • One regular, fully-connected lattice (axial hex coords → absolute pixel
    positions), not floating hexes. Only hovered or filled cells are ever visible.

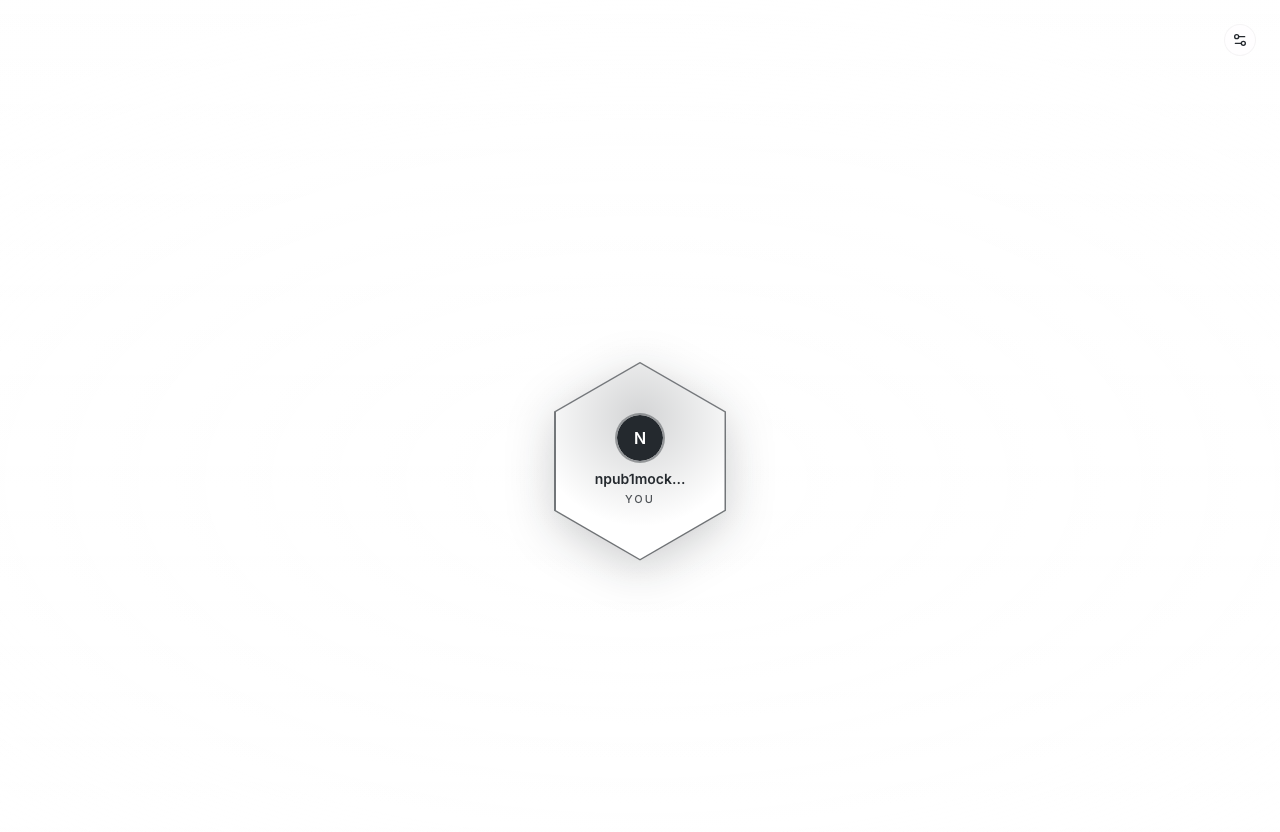

Fresh — just you

01-fresh

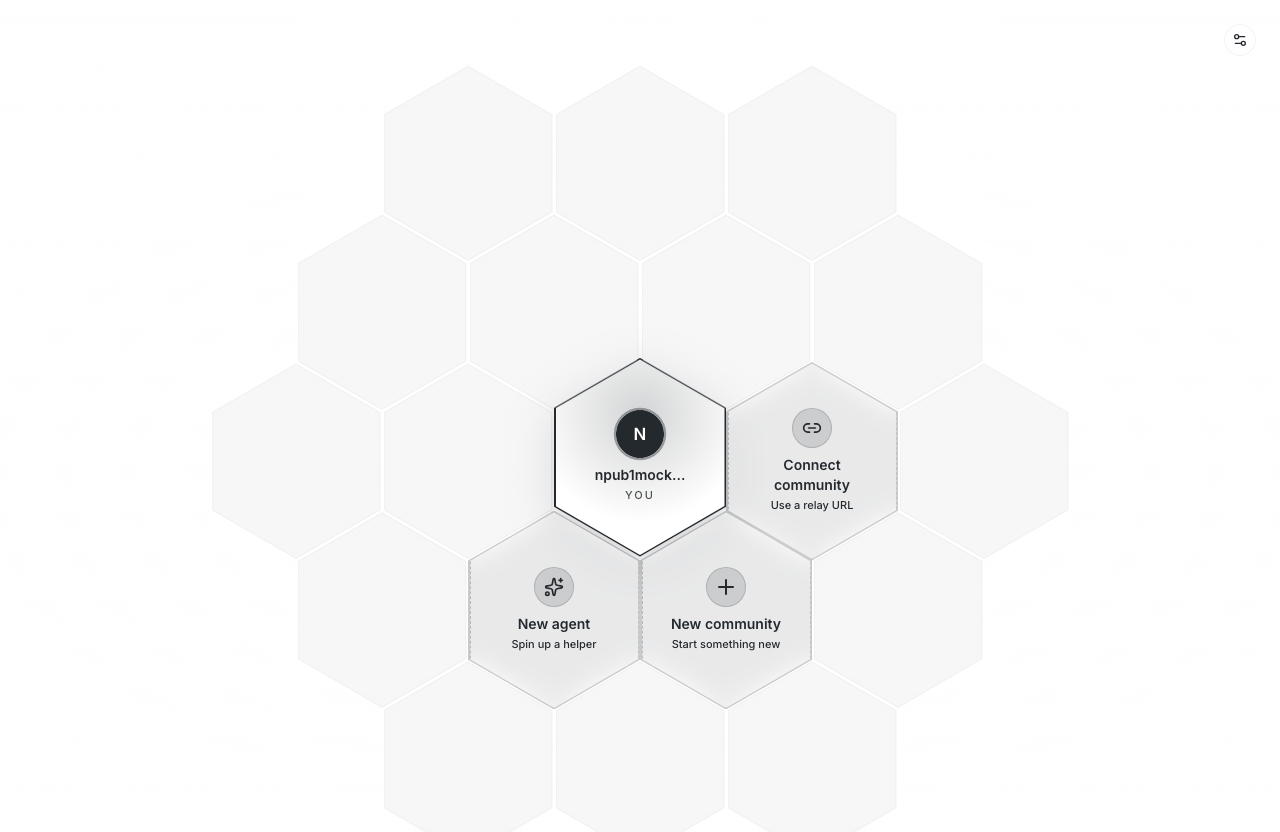

Fresh — hover reveals the create frontier

02-fresh-hover

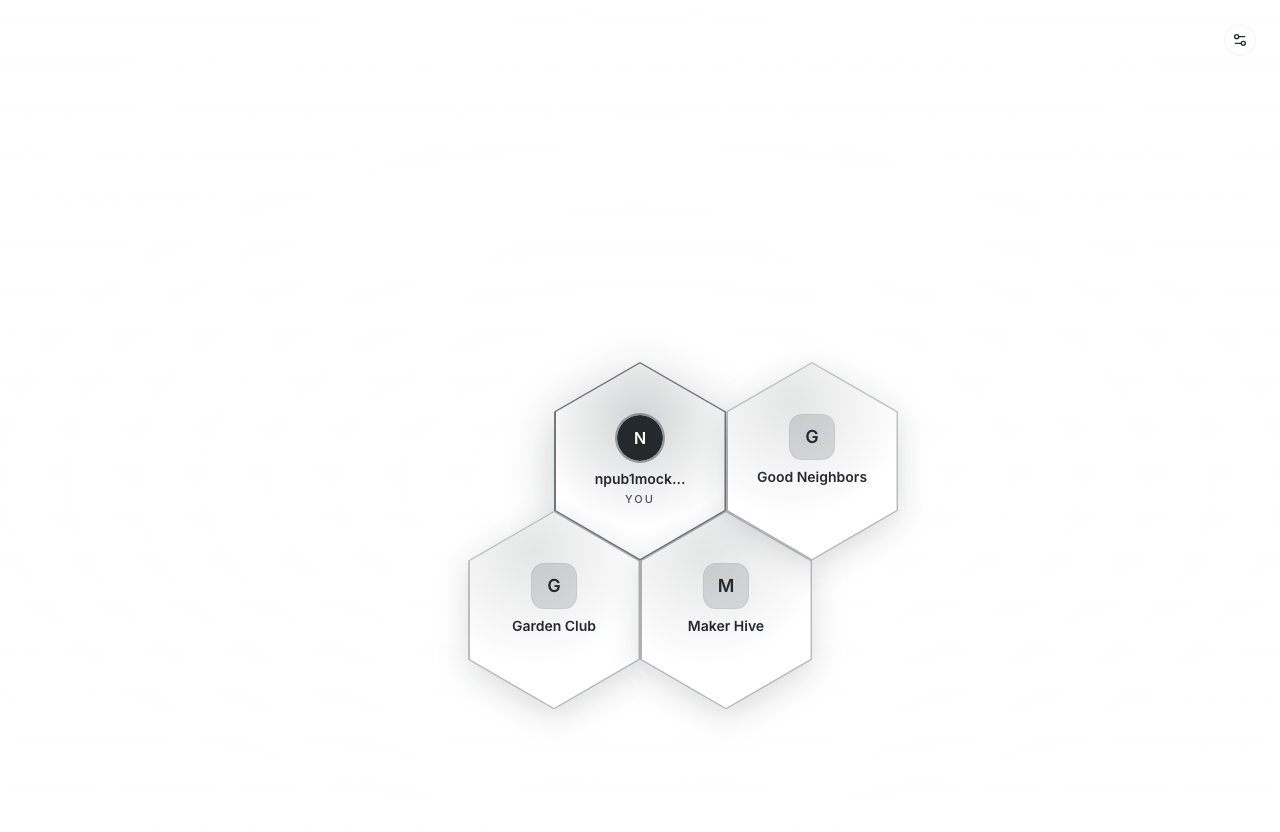

Populated — your communities on the lattice

03-populated

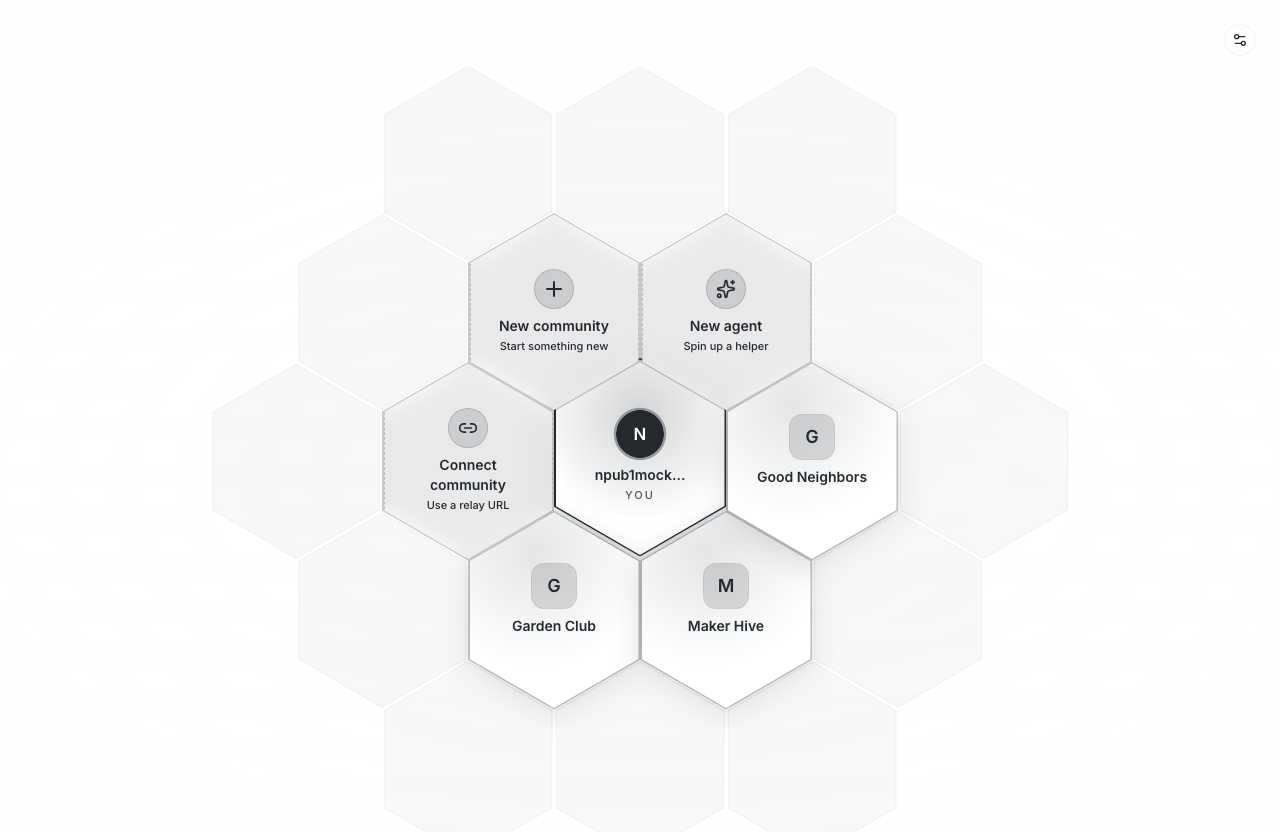

Populated — hover reveals frontier + create tiles

04-populated-hover


Under the hood

  • Communities (useCommunities) and local managed agents
    (useManagedAgentsQuery, offline) spiral outward from center as filled hexes.
  • "New agent" wired via requestOpenCreateAgent; RequestedAgentCreateDialogs
    is mounted here so it works before any relay is connected.
  • Hidden create tiles are pointer-events-none so a blank-area click can't
    fire an action; keyboard focus re-enables them. Required lattice radius is
    never capped, so no cell is ever silently dropped.

Validation: biome + tsc clean · check:px-text clean · production build
green · full desktop E2E smoke/integration 633 passed, 0 failed. The
buzz-push-gateway pre-push Rust failure is unrelated (this commit is desktop
TS/TSX only); CI re-runs the authoritative gate.

baxen added a commit that referenced this pull request Jul 19, 2026
@baxen baxen closed this Jul 19, 2026
