PuzzleKit Web

PuzzleKit Web is a pure frontend logic-puzzle tool for step-wise, explainable solving. It currently focuses on Slitherlink and Masyu.

The goal is not only to produce a final answer. The app shows each deduction step: what changed, which rule changed it, and how the board can be replayed forward or backward.

What It Does

• Runs entirely in the browser.
• Imports Slitherlink and Masyu puzzles from puzz.link-compatible URLs and Penpa+ URLs.

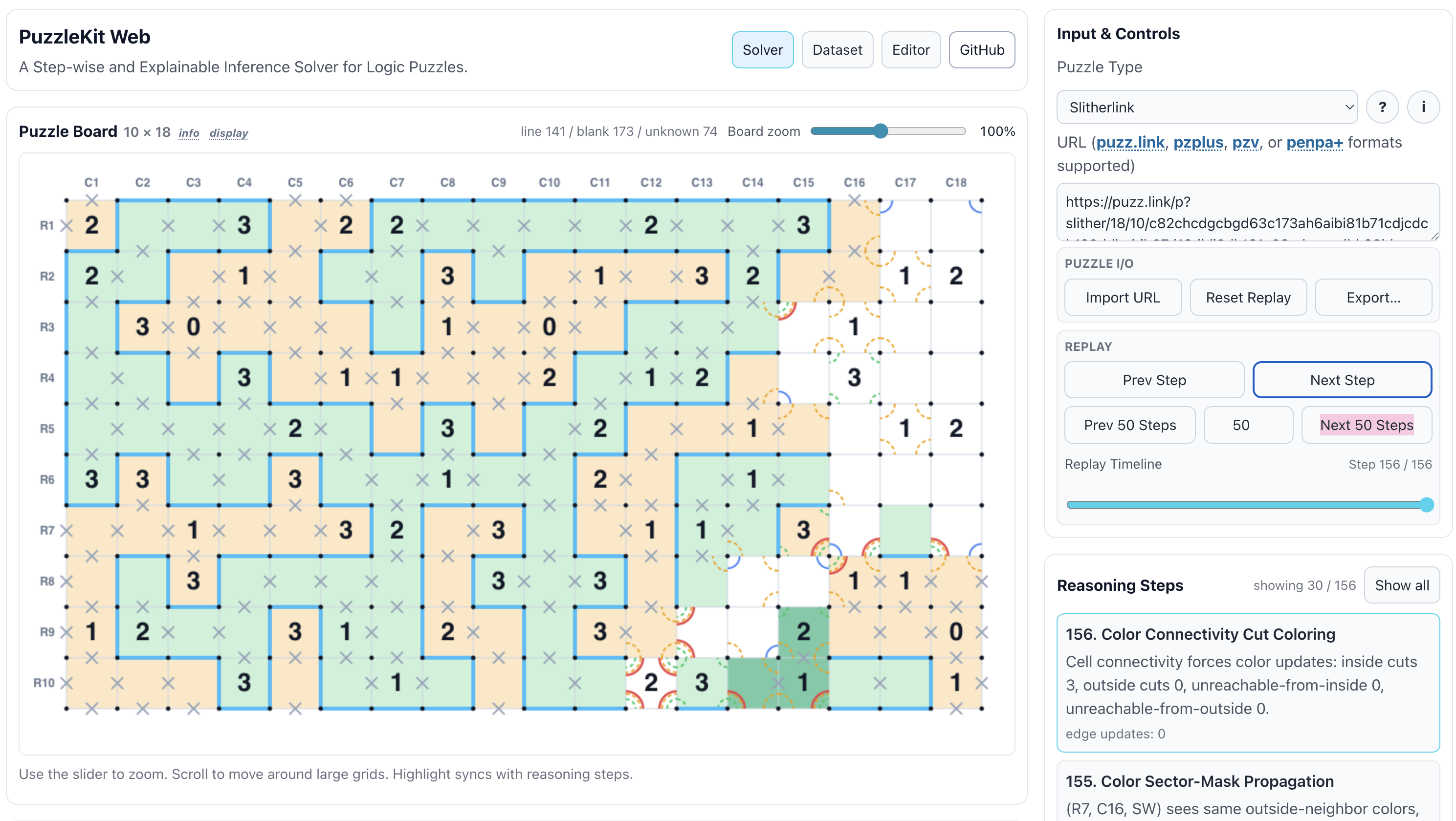

• Provides an explainable solver workspace with step replay, highlights, rule messages, and live stats.
• Provides an editor workspace for building Slitherlink and Masyu boards, importing URLs, and loading the result into the solver.
• Provides a small Dataset page for curated examples and benchmark-oriented puzzle sets.
• Exports supported puzzle states back to puzz.link-style URLs where available.

Slitherlink has the more mature rule stack. Masyu is now a first-class puzzle family with editor, import/export, rendering, replay, completion analysis, and an actively evolving solver.

Getting Started

Requirements:

• Node.js 20, matching .nvmrc
• Corepack with pnpm 10.33.0

corepack enable
pnpm install
pnpm dev

This starts the local Vite development server.

Common commands:

pnpm lint       # ESLint
pnpm test:run   # Vitest unit tests
pnpm build      # TypeScript + Vite production build
pnpm test:e2e   # Playwright end-to-end tests
pnpm benchmark:solve

App Surfaces

• Solver (/): import a puzzle, run one deduction at a time, jump through the replay timeline, inspect explanations, view stats, and export supported states.
• Editor (/editor): create custom Slitherlink or Masyu grids, edit clues/pearls and marks, import supported URLs, then hand the puzzle to the solver.
• Dataset (/dataset): browse curated public dataset manifests, preview puzzles, and load them into Solver or Editor.

Architecture Snapshot

src/
  app/        page composition and routing
  domain/     IR, parsers, exporters, plugins, rule engine, benchmark logic
  features/   board rendering, solver controls, editor, stats, explanations
  test/       test setup helpers
dataset/
  public/     small committed dataset manifests
  private/    local-only manifests ignored by git
docs/
  techniques/ puzzle-specific technique notes

Puzzle families are registered as plugins. A plugin owns parsing, exporting, help/legend content, stats, and the ordered rule list used by the solver. The shared rule engine applies explicit diffs so every step can be replayed and reverted deterministically.

Deployment

CI runs on pushes and pull requests targeting main:

pnpm lint
pnpm test:run
pnpm build

GitHub Pages deployment is triggered by pushing a v* tag. The Pages workflow builds dist/, adds an SPA fallback, and publishes the result.

Documentation

• docs/PROJECT_GUIDE_EN.md: compact project guide for AI agents and maintainers.
• docs/MASYU_AGENT_BRIEF.md: active low-token Masyu onboarding brief.
• docs/techniques/slitherlink.md: Slitherlink technique notes.
• docs/techniques/masyu.md: Masyu technique notes.
• docs/legacy/: older plans and research notes kept for reference only.

Why This Project Exists

Most puzzle solvers emphasize the final solution. PuzzleKit Web is built around the solving trace: each step should be inspectable, explainable, and replayable. The long-term direction is a browser-native reasoning workbench for logic puzzles, with puzzle-family support growing incrementally through small, explicit rules.

References

This repo is inspired by Puzzlink_Assistance, a browser plugin for puzz.link-style puzzles.

Slitherlink technique references include How slitherlink should be solved.
