Use a loop's variables in any operator inside the loop: type $i in a property

[aglinxinyuan]

In one sentence: inside a Loop Start ... Loop End block, type $i into a property of any operator, and every iteration runs that operator with the loop's current i.

Pull requests (reviewed and merged separately):

Part	Pull request	Issue
Engine: binds $i in operator properties	#8639 feat(amber): bind $i loop-variable references in operators	#8635
Property panel: accepts and suggests $i	#8640 feat(frontend): accept $variable references in loop blocks	#8636
Python operators: self.state in UDFs	#8642 feat(pyamber): register the state before process_state	#8641
Python-generated operators (sklearn, charts): bind $i in their properties	#8671 feat: bind $i in generated Python operators' properties	#8669

How it works

flowchart LR
  R[Reviews] --> LS["Loop Start<br/>Initialization: min_stars = 1<br/>Output: table"]
  LS --> F["Filter<br/>stars >= $min_stars"]
  F --> LE["Loop End<br/>Update: min_stars += 1<br/>Condition: min_stars <= 5"]

Loading

Declare the variable in Loop Start, type $min_stars into a property of any operator in the loop, and run. Each iteration uses its own value, and the operator's code does not change.

Design

A reference such as $i is a placeholder that is filled in when the loop runs:

compile                workflow starts            state message arrives          first tuple
$i is recorded    ->   the operator holds    ->   the loop's variables reach ->  the placeholder takes i's value,
as a placeholder       a placeholder              the operator                    used for every tuple of the iteration

Step	What happens	PR
Parse	A numeric or boolean property holding $i gets a typed placeholder (0, 0.0 or false), and the reference is recorded beside the operator. A text property keeps $i as its text.	#8639
Compile	The compiler finds the operators inside each loop. Inside, the reference is kept; outside every loop, a text such as $AAPL stays plain text, and a numeric $i is an error.	#8639
Run, Java operators	The loop's variables reach every operator in the loop as a state message, before the iteration's data. The operator is built at its first tuple, with each placeholder replaced by the variable's value.	#8639
Run, Python operators	The worker registers the state message on the operator as self.state before it calls process_state, so every callback can read the variables.	#8642
Python-generated operators	Their code is written from the properties before the loop runs. A text reference becomes a read of the variable when the code runs. For a number or boolean, the code is generated twice from two sample values; where the two versions differ by exactly the value, the code reads the variable instead. This covers every generated operator without changing any of them.	#8671
Property panel	Finds the loops that enclose an operator, turns its fields into text boxes that suggest the loops' variables, and flags a name that no enclosing loop declares.	#8640

Only Loop Start's initialization and Loop End's update change the variables, so they stay fixed within an iteration. Every copy of the state that an operator receives therefore agrees, and filling each placeholder once per iteration is enough.

Screenshots

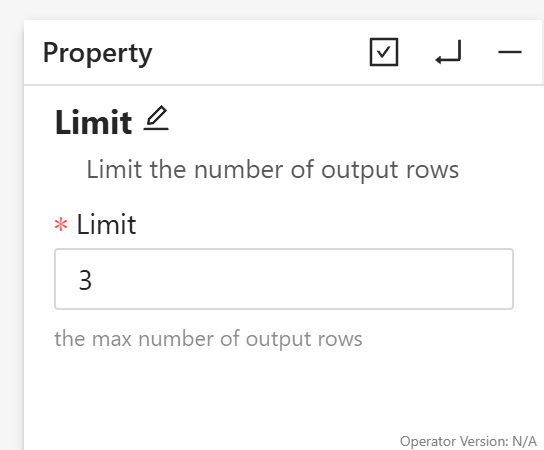

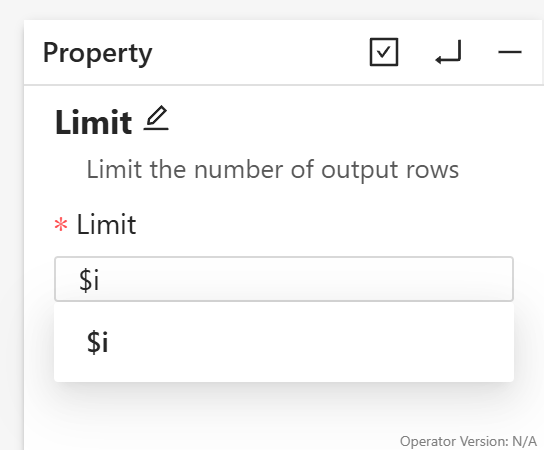

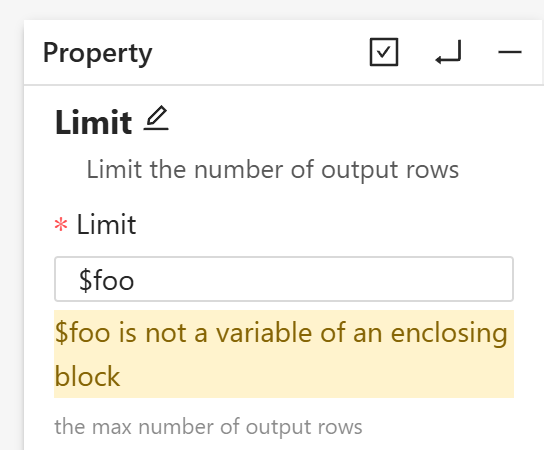

Outside a loop (as today)	Inside a loop	Undeclared name

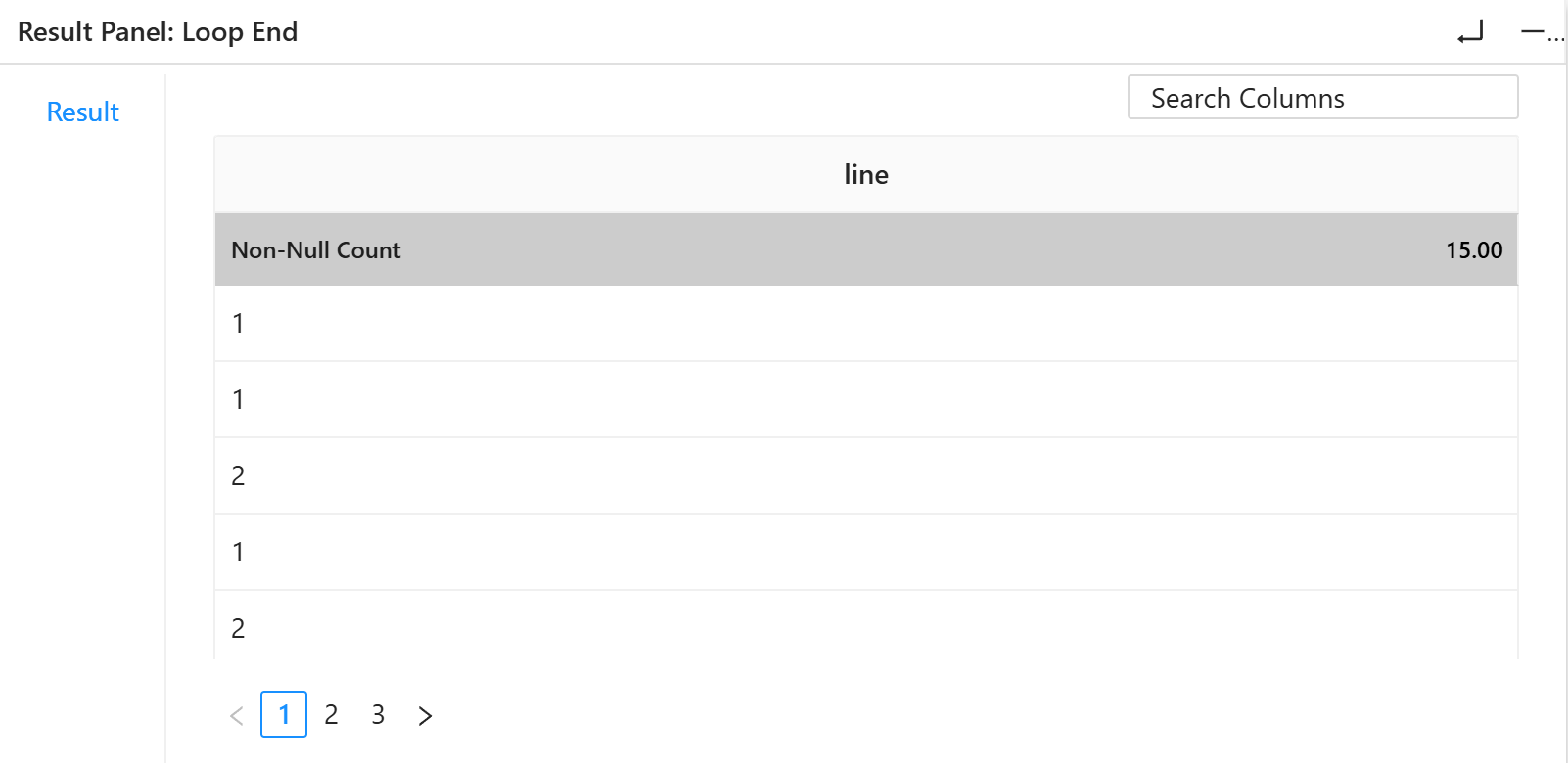

A run of Text Input (1..6) -> Loop Start (i = 0) -> Limit ($i) -> Loop End: iteration i lets i rows through, so Loop End collects 0 + 1 + ... + 5 = 15 rows.

In a Python UDF

class ProcessTupleOperator(UDFOperatorV2):
    def process_tuple(self, tuple_, port):
        if tuple_["stars"] >= self.state["min_stars"]:  # the loop's current variables
            yield tuple_

Not supported yet

Operators that also take input from outside the loop, properties that name a column, a numeric or boolean property that a Python-generated operator checks or computes with before it runs, a literal $... text inside a loop, operators in an inner loop of nested loops, and the Form View.

Feedback wanted

1. Is $name the right syntax, and how should a literal $ be written inside a loop?

2. How should a user refer to a loop variable in place of a true/false checkbox, such as the one below? A checkbox cannot hold $name, so inside a loop it currently becomes a text box that takes true, false or $name. Would a checkbox with a "use a loop variable" toggle be better?



3. What are good use cases for loop variables? For example: sweeping a model's hyperparameter, a filter threshold, or a chart setting across iterations.

[Xiao-zhen-Liu]

1. I think $name is OK, as long as we use a reserved symbol that can be easily parsed to indicate this is a loop variable. Which specific syntax is an implementation detail.

2. Can you clarify this question means? I don't understand it. Why would true/false fields become text boxes inside a loop?

3. Can all the Python native operators share the same code? If so it does not matter which operator comes next.

In general, can you try to include a bit more detail about this topic, especially what the design is? Currently only the user experience is described.

[aglinxinyuan]

For 2, we basically want to understand how users should reference a state variable in place of a boolean checkbox, like the one shown here:

For 3, I’m trying to understand what some good use cases for this state variable would be.

I intentionally focused on the user experience in the current version. I can add a separate section with more detail on the underlying design and implementation.

[chenlica]

For 3, a good use case is the "k" in the k-means algorithm. We want the user of the algorithm to access the k value, which can be passed as a state variable from the LoopStart operator.
